Usage

Orthopedics: restore bone translocation, reset, fixing

Surgery: taking foreign bodies out of the body, cardiac catheterization, implantable pacemakers, some of angiography and local photography etc.

Features

1. With unique base electric auxiliary support arm design, so it’s safer.

2. A unique hand-held controller design, which can control parameter set, equipment movement and radiation field, so the operation is more convenient

3. With high-quality Combination high frequency high-voltage X-ray generator, it can greatly reduce the amount of X-ray irradiation.

4. With a perspective KV, MA automatic tracking feature, so that the image brightness, sharpness automatically in the best condition

5. Adopting imported image intensifier, the quality is stable and reliable, and the image is of good clarity.

6. With medical progressive output high-resolution television system, it can store 8 images, the image is clearer, and easier to use,

7. With installation of dense grain grids, further enhance image definition.

Standard Configurations

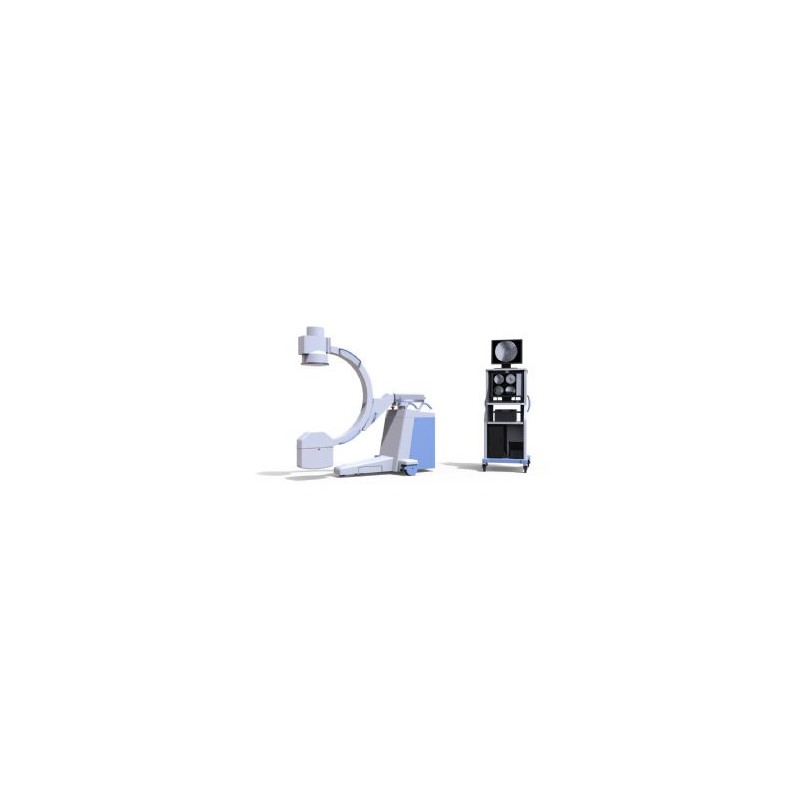

1. C-arm mainframe 1 set

2. Combined high-frequency high-voltage X-ray generator and high-frequency power supply (5.0kW, 40 kHz, 120kV) 1 set

3. imported 9 inch image intensifier 1 set

4. Imported medical ultra-low illumination CCD radiography 1 set

5. Digital acquisition & processing station (see workstation list for detail info) 1 set

6. Imported dense grain grids 1 set

7. Electrical adjustable beam limiting device 1 set

8. High-definition progressive output CCU control system 1 set

9.14-inch high-definition medical dedicated monitor 2 sets

10. Unique hand-held controller 1 set
