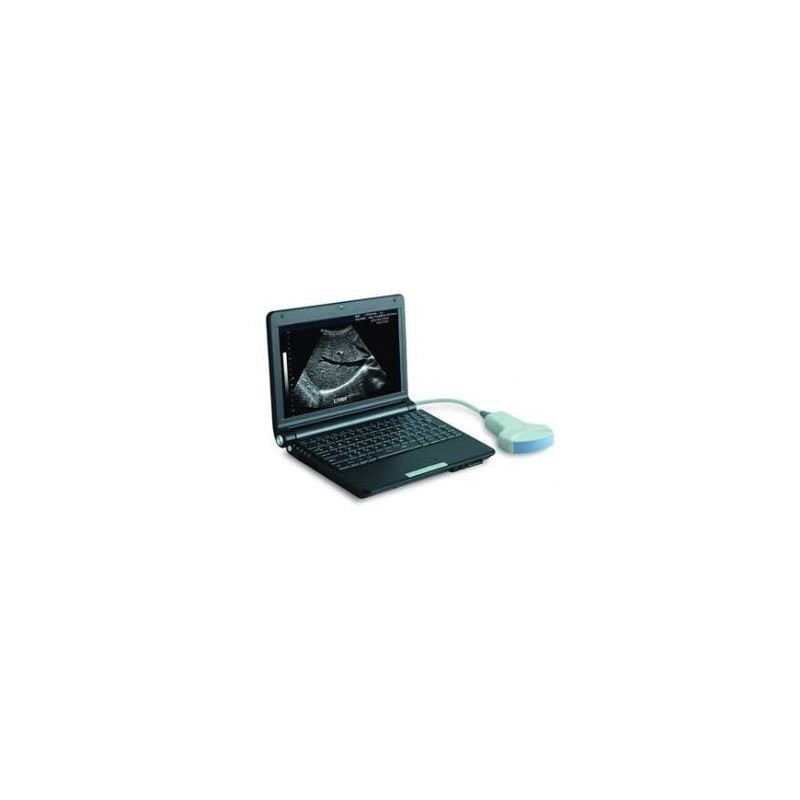

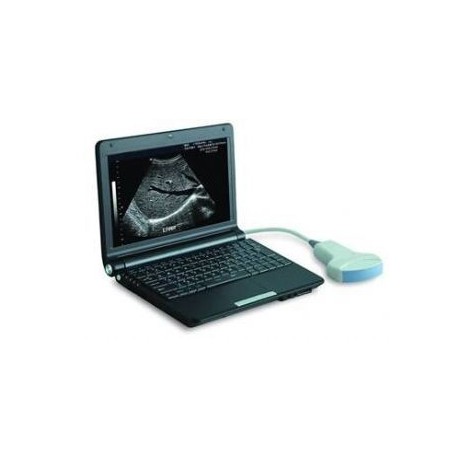

AJ-6000Plus Full Digital Laptop Ultrasound Scanner
AJ-6000Plus
New product
Notebook design. Light weight of1 kg,2cmfor thickness,17cmfor width,25cmfor length, very smart and convenient.
U Disk for upgrade.
Dismountable battery.
Connect with Jet printer, Laser printer to print directly.
By buying this product you can collect up to 23670 loyalty points. Your cart will total 23670 points that can be converted into a voucher of 2 367 F.
- Write a review
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
-
General Description
Notebook design. Light weight of1 kg,2cmfor thickness,17cmfor width,25cmfor length, very smart and convenient.
U Disk for upgrade.
Dismountable battery.
Connect with Jet printer, Laser printer to print directly.
Other performance is as the same as the laptop computer, such as power save mode, touch mouse and so on.
Battery supply
192-frame cine loop, Two USB ports, SD card
General software, Obstetrics software and Cardiac software.
Software
General measurement: distance, circumference, volume, angle, heart rate and etc.
Obstetrics measurement software: BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD and calculating fetus’ weight, pregnancy week, fetal physiological rating according to the previous measurements.
Cardiac measurement software. The measurement result could be shown automatically.
Standard Configuration
Main unit with 10.4 inches monitor,
3.5MHz Convex Probe,
One Probe Connectors,
USB port,
Options
High frequency linear probe
Trans-vaginal probe
Heart Probe
Thermal Paper Printer
Jet printer
Laser printer
Scanning mode
electronic linear array, electronic convex array
Imaging model
B, B/B, B/M, M, 4B
Gray scale
256 levels, four selectable gamma curve
Transducer frequency
2.5-8.5 MHz
Magnification
×0.8, ×0.9, ×1.0,×1.1,×1.2,×1.3, ×1.4,×1.5
Permanent storage
1024
Cine loop
192, manual and automatic
Sound Power
8 grades from 0-7
Dynamic Range
Adjustable from 30-75
USB Ports
2
IP set
8
Body Mark
35 kinds
Pseudo color
5 kinds
Image Processing
Up/Down, Left/Right, Black/White, Frame correlation Edge enhancement, Scroll
Measurement
Circumference, Area, Volume, Heart ratio, Velocity, OB and Cardiac
Focus
Number and location of the focus can be adjusted
Puncture
Puncture guide line
TGC
Adjustable, Near field, Middle field and Far field are adjustable from 39-99
Body Marks
35
IP set
Hospital’s name, Date, Time, Formula of Fetus’ weight and Pseudo color
Image store format
BMP, DICOM
Formula of Fetus’ weight
OSAKA, TOKYO1, TOKYO2, MERZ
Frame correlation, Edge enhancement, Dynamic range, center line, scan angle Puncture
Voltage
AC85V-265V
