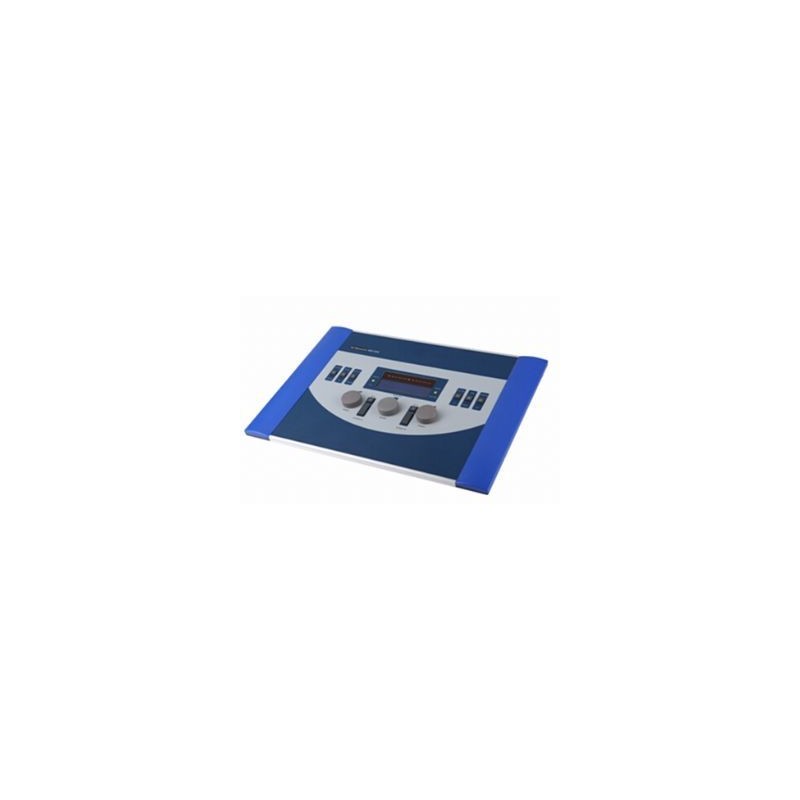

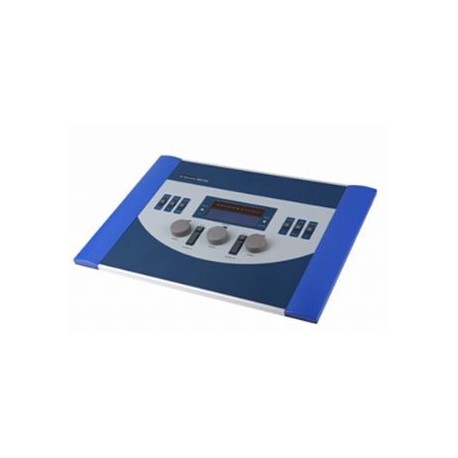

Audiometer AJ-TL104 can connect to the computer to transfer the data and also you can save the data on your computer.

Frequency and maximum output intensity

Frequency     AC dB HL          BC dB HL

Hz              TDH39           B71

250             100              45

500             120              60

750             120              60

1000            120              70

1500            120              70

2000            120              70

3000            120              70

4000            120              60

6000            110

8000            100

Extended range function: If haven’t select, AC output restrictions smaller than maximum output 20 dB

Input : pure tone, warble tone ±5%, 5Hz Sine wave frequency modulation.

Masking : Both air conduction and bone conduction can do masking

Computer Interface: USB data transfer interface, can transfer data to computer, and also can set up personalized print reports.

Output : Air conduction earphone(L/R), Bone conduction earphone(L/R), Insert earphone, Insert masking.

Transducer: TDH 39 earphone (standard configuration)

Ear~Tone5AInsert earphone (Optional)

B71 bone conduction earphone (standard configuration)

Monitor function: Optional

Feedback words : Built-in feedback words microphone. 50-90 dB SPL can be continuous adjust in panel.

Send test voice: Manual or automatic/ Monopulse/ Multiple-pulse

Frequency selection :If you need to fast test, you can select 250 Hz,750 Hz,1500Hz, 4k Hz or 6k Hz.

Display : Letter-figure

Patient signal: Responser

Structure : Engineering plastic shell

Attenuator control : Standard rotary switch (can choose Push-button switch)

Power supply: Outer type regulated power supply (standard configuration), 220-230V,50-60 Hz

Fuse : T2ABuilt-in fuse

Size :45cm*30cm*7cm

Net Weight ：1775g

Standard accessory: TDH39 Air conduction earphone, B71 Bone conduction earphone, responder, power line, USB line, CD software
