PC-based EMG/EP measuring system

■ Professional hardware technology. Its performance is credible and steady.

■ Multi processing unit parallel dispose technology , which makes data collection and graphics  display more rapid, it has 4 channels, which satisfies different work modals in the clinic EMG examination .

■ Low noise, high CMRR, montage programmable electrode  junction box.

■ Independently programmable stimulators allows sophisticated examinations.

■ Professional electromygram operation space, shortcut and steady.

■ Intraoperative monitor capability.

■ High speed and completely self-motion data collection and analysis, more nicety and more rapid with electrical stimulus , voice stimulus and light stimulus.

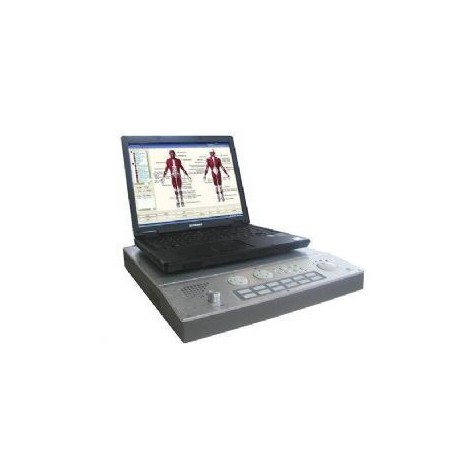

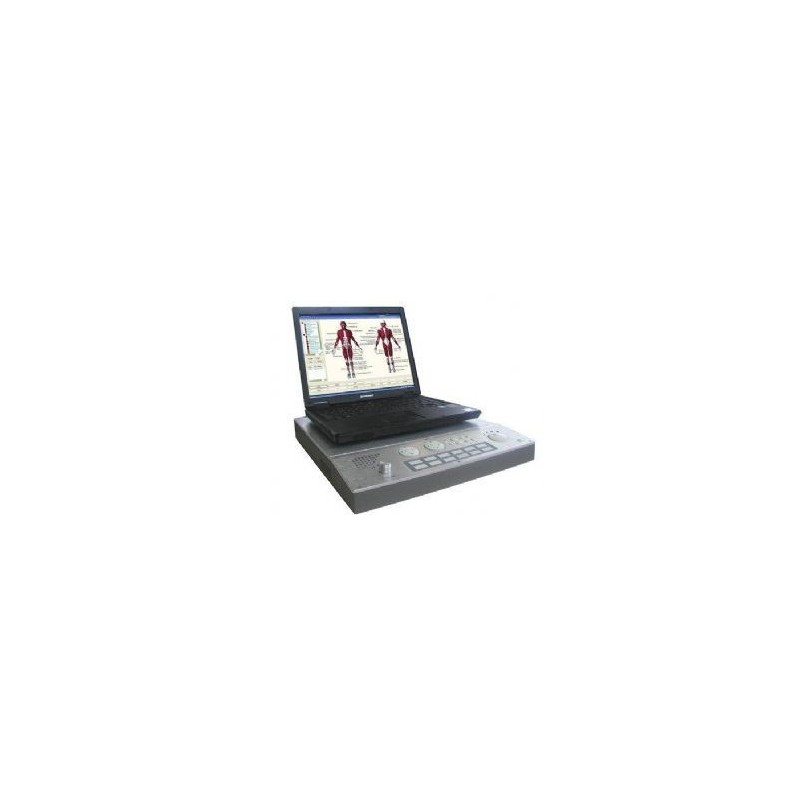

CMS-6600B EMG & EP SYSTEM

Specifications

1.Main System Part

A/D conversion resolution 16 Bit

Sampling ratio 200kHz

Analysis time  5-5000ms

Stimulating frequency 0.1-50Hz

2.Amplifier Part

Four leads

Sensitivity  0.05μV-20mV/Grid

Earth noise  EMG <= 4μV（Vpp）

EP <=0.1μV（Vpp）(1000 times in average)

Common-mode rejection ratio >= 100dB

50Hz Ban wave setting

Upper limit Filter-frequency 20kHz

Lower limit Filter-frequency 0.01Hz

Plus amplifies 25 times-400000 times

3.Stimulator Part

Current stimulator: constant current 0.2-100mA   pulse width 50-1000μS  short circuit and over loading protection.

Visual stimulator: Field: full view,half view,quart view   Pattern: tessellation,horizontal bar,vertical bar

Audio stimulator: Type: 40Hz, Click sound  Intensity: 0~120 db
