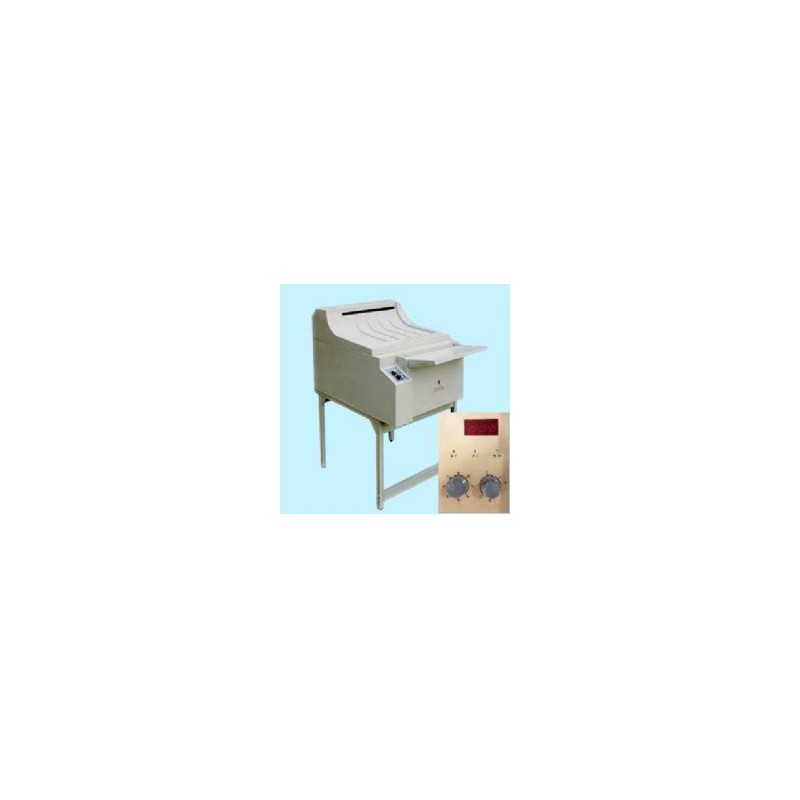

Processeur automatique de film radiographique FP-435A (4 rainures)

New product

By buying this product you can collect up to 26693 loyalty points. Your cart will total 26693 points that can be converted into a voucher of 2 669 F.


2 669 400 F

Add to wishlist

More info

Feature

*2.4 inch LCD screen, can display developer, fixer, drying temperature and processor speed

*with Intel chip, it has the function of failure analysis and troubleshooting.

Specifications

1. Film size: *Standard film: single piece(76×152~356×432)(mm)(3〞×6〞~14〞×17〞)

2. Max. film width: 17’’, length have no limited.

3. Tank volume: Developer 11L, fixer 11L, water 11L

4. Processor speed: 90s-360s adjustable

5. Develop time: 20s-90s choice

6. Develop temp: 20℃-42℃ adjustable

7. Drying temp: 40℃-60℃ adjustable

8. Developing Capability: 160films/hour (14’’x17’’), 180films/hour(10’’x12’’)

9. Supplement fluid methods: automatic or manual

10. Supplement fluid volume: setting between 20ml-400ml

11. Water wash control: Control by magnetic valve automatically, inflow water while film in

12. Film in mode: Photoelectric reaction

13. Developing sequence: Developing, washing, fixing, washing, drying

14. Stand by: 24hours

15. Noise: ≤55

16. Size: L*W*H 1180x630x1100mm

17. Net Weight:115KGS, Gross Weight:130KGS
