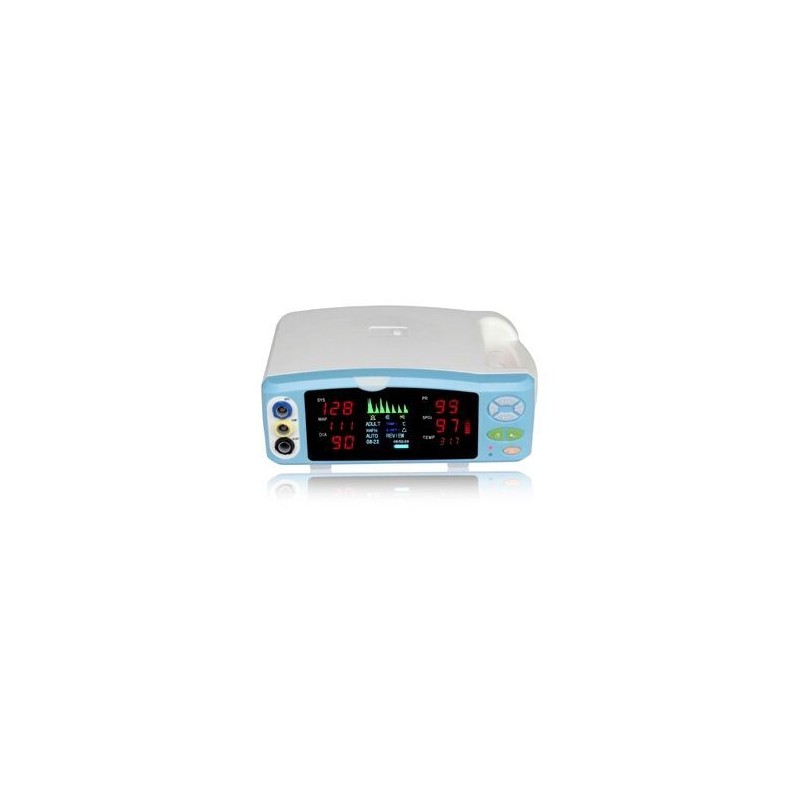

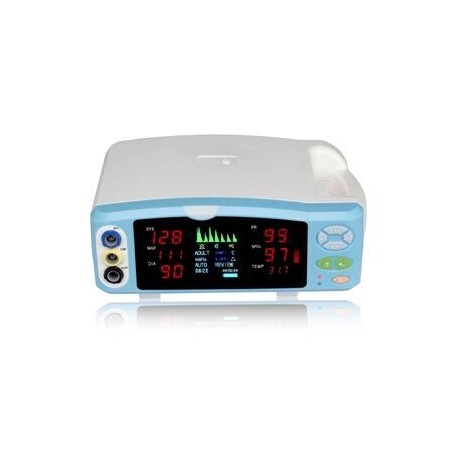

NIBP+PR (2 Parameters) Vital Signs Patient Monitor AJ-3400C

Features

Four parameters: NIBP, SpO2, Pulse Rate, Temperature

* SpO2 waveform, PR strength display

* 2.8 inch color LCD with real time display

* Storage/Review trend data up to 3888 groups, data save time interval settable

* Audio and visual alarm when parameters exceeded and sensor-off

* Built-in rechargeable Li-ion battery, up to 4 hour running time

* Automatic shutdown for power saving, shutdown time interval settable

* Via USB to connect with the computer, unique software for telemonitoring

  by transmitting data synchronously via internet

* Battery capacity indicatior and prompt when battery low

Technical Specifications

*NIBP

Measure Method: Automatic oscillometric

Patient: Adult and Pediatric

Measurement unite: mmHg/kPa selectable

Measurement mode: Manual, Auto, STAT

Measurement Type: SYS, DIA, MAP

Measurement interval in AUTO mode:1,2,3,5,10,15,20,30,45,60Min

Measuring period in STAT mode: 5 Min

Measure range:

Adult:30～2550 mmHg; child: 30～160 mmHg

Accuracy: 1 mmHg

Alarm limits range:

SYS : Upper limits70～250 mmHg,     Lower limits 60～180 mmHg

DIA : Upper limits 40～200 mmHg,     Lower limits35～150 mmHg

MAP : Upper limits 60～230 mmHg,      Lower limits 50～160 mmHg

*SpO2

Measure Range:  35～100%

SpO2 Accuracy:  2%(70～99%), 3%(40～70%)

Pulse Rate Range: 0～254 bpm

Pulse Rate Accuracy: 1 bpm

*Alarm limits range:

SpO2  upper limits : 95～100%   lower limits: 85～96%

Pulse Rate：keep up with the heart rate

*Temperature

Channel: 1

Input: Body surface thermal-sensitive resistor temperature sensor

Measurement Unit: C/°F selectable

Measure range: 0～50℃

Alarm limits range: Upper limits 36～45℃   Lower limits 34～38℃

Measure accuracy:0.1℃

*System Specifications

Alarm ON/OFF: controlled by general switch and parameter switch (two levels)

Display mode: LED and2.8’color LCD screen

Trend data: 3888 groups of SpO2, TEMP,SYS, DIA  trend data, The record time interval can be set to 5 Sec. to 120 Sec. , so that the record time rang can be up to 128 hr.

AC power adaptor

Input: AC 100～240V, 50/60Hz,0.7A

Output: DC 5V，2.5A

Internal battery

Type: 2800mAh/3.7V Li-ion rechargeable battery

Operating Time: 6 hours of stand-by time with a full battery.

Recharge time: 8 hours

Dimension:280mm×190mm×100mm

Net Weight :1000g
