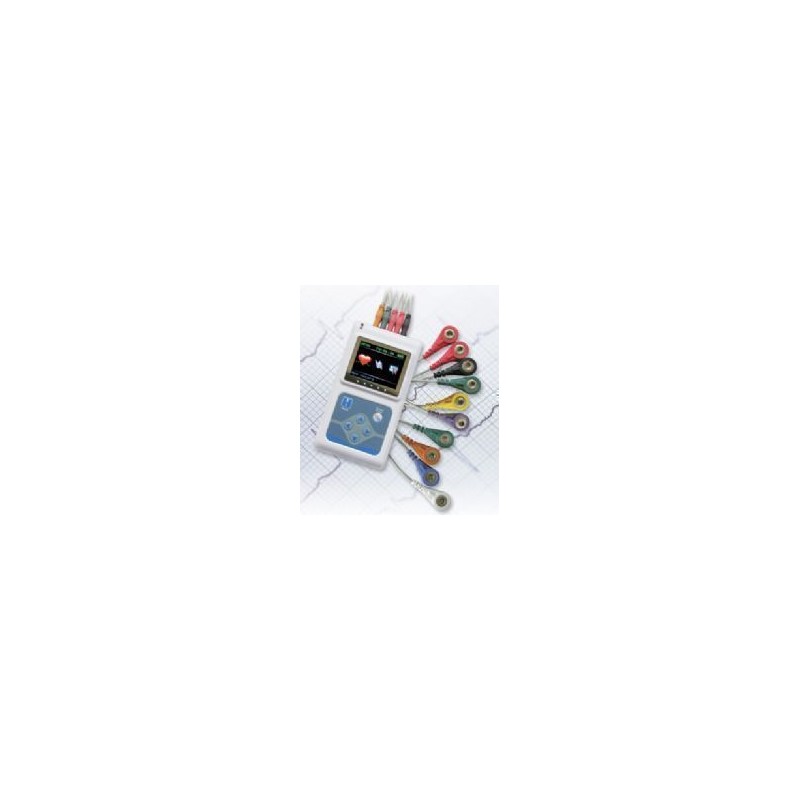

The Features of Recorder
■  With advanced design and technology, the recorder can work stably,
    dependable and durable.
■  Be provided with the capability of anti-jamming and shock-pro.
■  Small volume with OLED screen. The resolution is 160*128.
■  Be provided with functions of waveform preview, record review and event
    marking.
■  Accurate record of the start time of the data sampled owing to the real time
   clock of itself.
■  Avoid damage owing to the repeating inserting and pulling out by using the
    inbuilt TF card to storage the data.
■ The maximum capability can be 2GB, so the original data can be saved perfectly
   by no compression.
■ The average review time of single case can be less than 40 seconds by using
   interface of USB 2.0.
■ Record waveform details inextenso by the design of high precision and sampling
   frequency.
■ Record the state of pacemaker exactly by higher sampling frequency.
■ International standard of 12 leads. Record 24-hour DECG with the same
   standard of the ECG.

The Features of Software
■  Quick and accurate analysis system.
■  With 12 leads synchro analysis , QRS search can be more exactly.
■  There are more than 10 templates as atrial premature beat module, ventricular
    premature beat module, long interval module, atrial flutter module, atrial
    fibrillation module etc. and multiplicate User-defined templates could almost
    identify every kind of pathologic waveforms.
■  Optional main channel.
■  Agile and exact "Atrial Fibrillation" analysis.
■  The function of pacing analysis could analyze all pacemakers.
■  Many pacine modules have been added.
■  Any period of single lead or 12-leads ECG can be reviewed at any time with the
    function of fast waveform review and analysis.
■  The types of the analysis system of HR variability include five minutes of short
    ECG and one hour or 24-hour of long ECG.
■  Print report expediently.
■  Perfect function of case management.
■ With the function of ST segment analysis and general load of the disorder of the
    heart muscle, the physician can judge a disease or disorder of the heart muscle
    generally.
■ "Sleep breath pause syndrome analysis", the physician could print sleep
    asphyxia  analysis report and diagnose.
■ "HRT" analysis, when the adjustable function is natural, this transitory change
   will be represented by the form of HRT immediately.
   15."T Wave alternation" analysis is a important index on judging and preventing
   Arrhythmia .
■ The report has more reference value with the functions of VCG, VLP, TVCG and
   QTD analysis.

Specifications
Number of channels: 12 channels;
Sampling rate:10000Hz;
Sampling accuracy:12bit;
Recording time : 24 h;
Power: 2 batteries in size 5;
Interface: USB2.0;
Scale voltage:1mV±5%;
Standard Sensitivity:10mm/mV±5%;
Noise level:≤30μV;
CMRR:≥60dB;
Feathers of low frequency : Time constant>3.2s;
Scan speed:25mm/s±5%;
Enduring polarization voltage:±300mV;
Least measure signal : 50 µV p-p;
Product safety type : Type B (Internally powered);
Size:111mm(L)*60mm(W)*25mm(H);
Net Weight:102g(Without battery).
